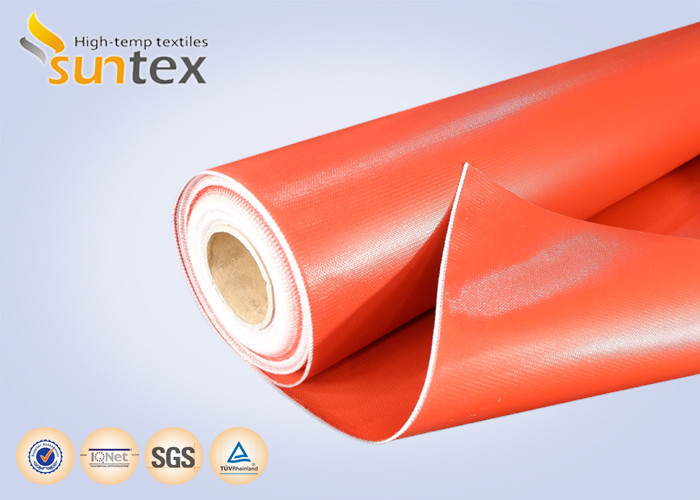

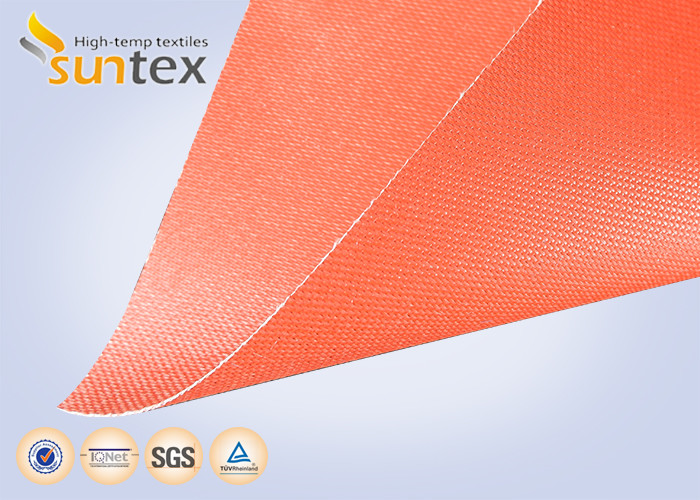

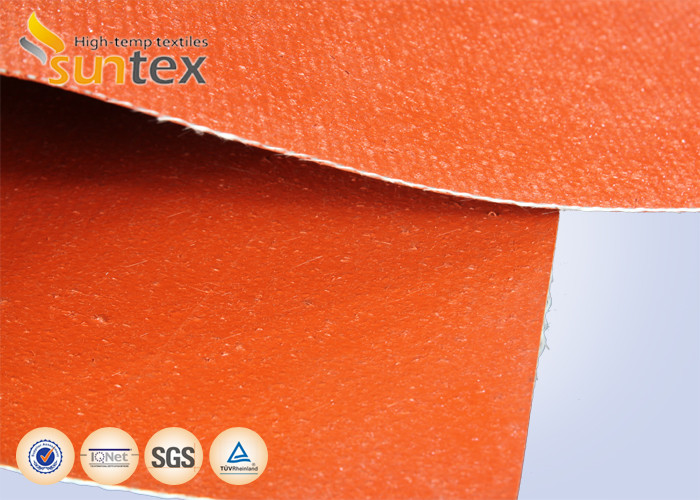

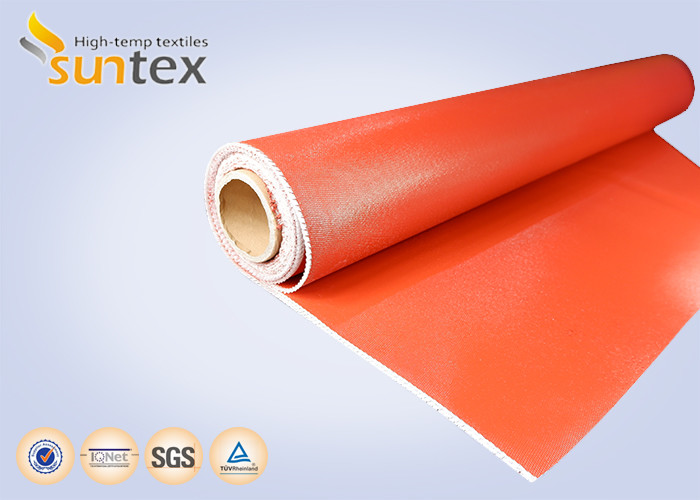

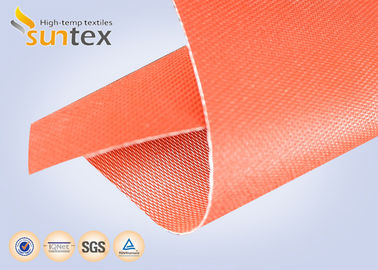

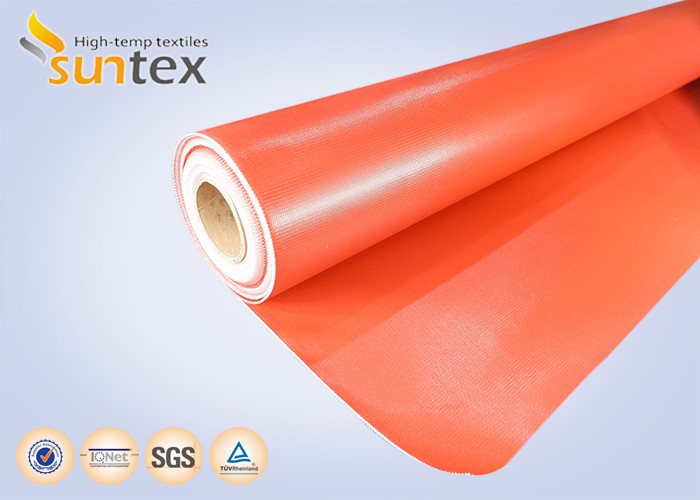

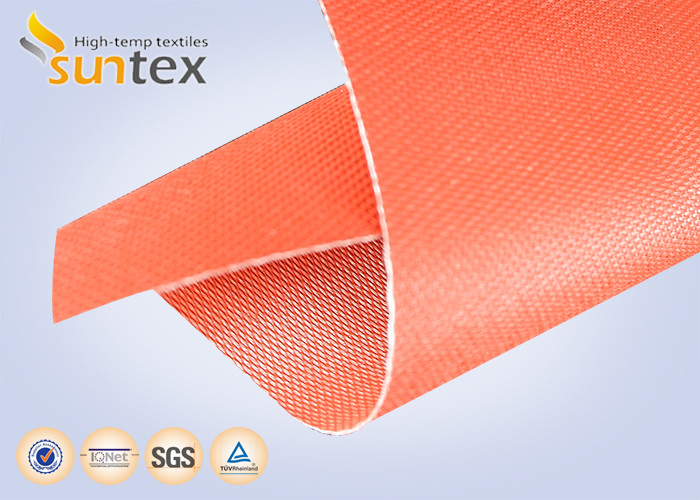

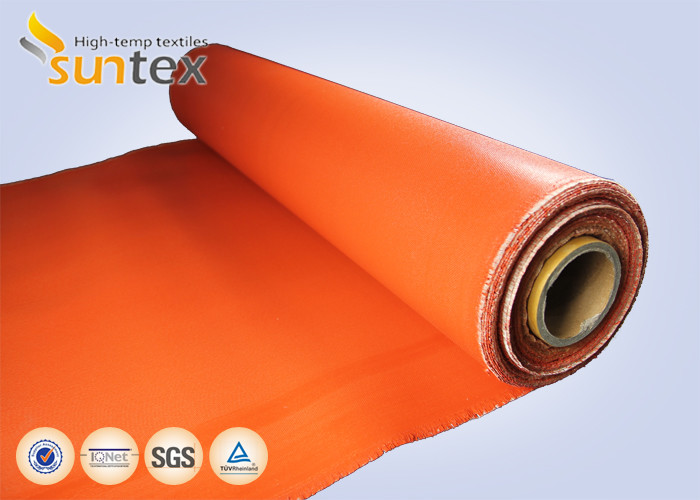

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints

  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
  • Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints
Lieu d'origine Chine
Nom de marque SUNTEX
Numéro de modèle Le nombre total d'émissions de CO2 est estimé en fonction de l'indice de CO2.
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Capacité d'approvisionnement 500000sqm/month

Contactez-moi pour des échantillons gratuits et des coupons.

Je suis désolé.:0086 18588475571

Je suis sur WeChat.: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Temperature resistance -50 C degree to 500 C degree Weight 400 g/sqm
Thickness 0.3 mm Coating silicone rubber
Width 1 / 1.2 / 1.5 meter Alkali Content Alkali Free
Color Grey Roll length 50 m / 100 m
Mettre en évidence

silicone rubber coated fabric

,

pipes silicone rubber coated fabric

,

insulation silicone rubber coated fabric
Laisser un message
Description de produit

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description



Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 0Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 1Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 2Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 3

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 4

Product Application

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 5

Packaging & Shipping

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 6

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 7



Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 8

Exhibition & Example

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 9

Contact Us

Silicone Rubber Coated Fabric Provides Insulation For Pipes , Valves And Joints 10
